MOP Inclined Vibrating Screen
Minyu MOP type inclined vibrating screens are built in rugged construction to be stationed with a 15-degree angle in operating fields. Their design is simple, and they are especially useful and economical in screening applications for coarse crushed stones and minerals. The vibrating unit consists of an unbalanced eccentric shaft with added-on counterweights allowing for different stroke travels to generate a circle motion. Users can adjust the counterweights whenever necessary. Compared to horizontal screens, the inclined screens need less power thanks to the 15-degree slope and gravity effect.
| Model No. | Screen Size (in/mm) | Deck | Inclined Angle | Double Amplitude (mm) | Vibrating Frequency (rpm) | Power (HP/kW) | Weight (lbs/kg) |
|---|---|---|---|---|---|---|---|
| MOP1230D | 4x10 / 1200x3000 | 2 | 15º | 10 ± 10.5 | 850 | 10 / 7.5 | 7,250 / 2,900 |
| MOP1230T | 4x10 / 1200x3000 | 3 | 15º | 10 ± 10.5 | 850 | 15 / 11 | 7,920 / 3,600 |
| MOP1230F | 4x10 / 1200x3000 | 4 | 15º | 10 ± 10.5 | 850 | 15 / 11 | 9,350 / 4,250 |
| MOP1236D | 4x12 / 1200x3600 | 2 | 15º | 10 ± 10.5 | 850 | 10 / 7.5 | 6,820 / 3,100 |
| MOP1236T | 4x12 / 1200x3600 | 3 | 15º | 10 ± 10.5 | 850 | 15 / 11 | 8,800 / 4,000 |
| MOP1236F | 4x12 / 1200x3600 | 4 | 15º | 10 ± 10.5 | 850 | 15 / 11 | 11,000 / 5,000 |
| MOP1536D | 5x12 / 1500x3600 | 2 | 15º | 10 ± 10.5 | 850 | 15 / 11 | 8,800 / 4,000 |
| MOP1536T | 5x12 / 1500x3600 | 3 | 15º | 10 ± 10.5 | 850 | 20 / 15 | 11,660 / 5,300 |
| MOP1536F | 5x12 / 1500x3600 | 4 | 15º | 10 ± 10.5 | 850 | 25 / 18.5 | 13,860 / 6,300 |
| MOP1542D | 5x14 / 1500x4200 | 2 | 15º | 10 ± 10.5 | 850 | 20 / 15 | 8,690 / 3,950 |
| MOP1542T | 5x14 / 1500x4200 | 3 | 15º | 10 ± 10.5 | 850 | 20 / 15 | 11,330 / 5,150 |
| MOP1542F | 5x14 / 1500x4200 | 4 | 15º | 10 ± 10.5 | 850 | 25 / 18.5 | 14,080 / 6,400 |
| MOP1848D | 6x16 / 1800x4800 | 2 | 15º | 10 ± 10.5 | 850 | 20 / 15 | 11,660 / 5,300 |
| MOP1848T | 6x16 / 1800x4800 | 3 | 15º | 10 ± 10.5 | 850 | 25 / 18.5 | 15,290 / 6,950 |
| MOP1848F | 6x16 / 1800x4800 | 4 | 15º | 10 ± 10.5 | 850 | 40 / 30 | 18,480 / 8,400 |
| MOP2148D | 7x16 / 2100x4800 | 2 | 15º | 10 ± 10.5 | 800 | 25 / 18.5 | 11,770 / 5,350 |
| MOP2148T | 7x16 / 2100x4800 | 3 | 15º | 10 ± 10.5 | 800 | 25 / 18.5 | 16,170 / 7,350 |
| MOP2148F | 7x16 / 2100x4800 | 4 | 15º | 10 ± 10.5 | 800 | 30 / 22 | 20,570 / 9,350 |
| MOP2160D | 7x20 / 2100x6000 | 2 | 20º | 10 ± 10.5 | 800 | 30 / 22 | 14,725 / 6,693 |
| MOP2160T | 7x20 / 2100x6000 | 3 | 20º | 10 ± 10.5 | 800 | 40 / 30 | 19,719 / 8,963 |
| MOP2160F | 7x20 / 2100x6000 | 4 | 20º | 10 ± 10.5 | 800 | 50 / 37 | 23,430 / 10,650 |
| MOP2460D | 8x20 / 2400x6000 | 2 | 20º | 10 ± 10.5 | 800 | 30 / 22 | 15,070 / 6,850 |
| MOP2460T | 8x20 / 2400x6000 | 3 | 20º | 10 ± 10.5 | 800 | 50 / 37 | 20,900 / 9,500 |
| MOP2466D | 8x22 / 2400x6600 | 2 | 20º | 10 ± 10.5 | 800 | 50 / 37 | 17,820 / 8,100 |
Capacity based on continuous regulated feed of clean, dry limestone of normal hardness with a bulk density of 1.6 ton/m3. Capacity may vary +/- 25% with the size and nature of the rock and the working conditions of the plant.
All parameters are for reference only & subject to change without notice.

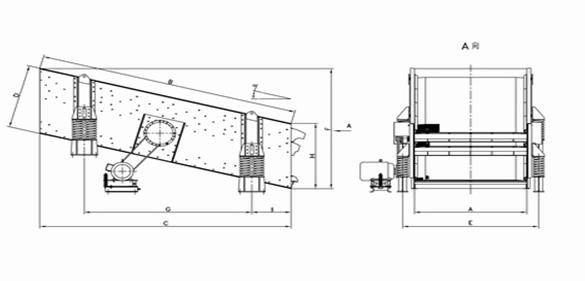

Dimensions (mm)
| Model No. | Screen Size (in/mm) | Deck | Dimensions (mm) | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOP1230D | 4x10 / 1200x3000 | 2 | - | 1200 | 3000 | 2898 | 1135 | 1604 | 1960 | 1739 | 1175 | 485 |
| MOP1230T | 4x10 / 1200x3000 | 3 | - | 1200 | 3000 | 2898 | 1435 | 1604 | 2266 | 1740 | 1486 | 483 |
| MOP1230F | 4x10 / 1200x3000 | 4 | - | 1200 | 3000 | 2898 | 1735 | 1594 | 2663 | 1903 | 1796 | 485 |
| MOP1236D | 4x12 / 1200x3600 | 2 | - | 1200 | 3600 | 3477 | 1135 | 1600 | 2198 | 2330 | 1175 | 483 |
| MOP1236T | 4x12 / 1200x3600 | 3 | - | 1200 | 3600 | 3468 | 1435 | 1604 | 2508 | 2330 | 1479 | 483 |
| MOP1236F | 4x12 / 1200x3600 | 4 | - | 1200 | 3600 | 3480 | 1735 | 1600 | 2730 | 2318 | 1796 | 485 |
| MOP1536D | 5x12 / 1500x3600 | 2 | - | 1500 | 3600 | 3477 | 1135 | 1900 | 2228 | 2318 | 1175 | 488 |
| MOP1536T | 5x12 / 1500x3600 | 3 | - | 1500 | 3600 | 3477 | 1435 | 1934 | 2550 | 2318 | 1486 | 486 |
| MOP1536F | 5x12 / 1500x3600 | 4 | - | 1500 | 3600 | 3477 | 1735 | 1936 | 2866 | 2318 | 1790 | 482 |
| MOP1542D | 5x14 / 1500x4200 | 2 | - | 1500 | 4200 | 4057 | 1135 | 1900 | 2382 | 2729 | 1175 | 656 |
| MOP1542T | 5x14 / 1500x4200 | 3 | - | 1500 | 4200 | 4057 | 1435 | 1934 | 2706 | 2730 | 1480 | 656 |
| MOP1542F | 5x14 / 1500x4200 | 4 | - | 1500 | 4200 | 4057 | 1735 | 1938 | 2883 | 2898 | 1788 | 486 |
| MOP1848D | 6x16 / 1800x4800 | 2 | - | 1800 | 4800 | 4693 | 1735 | 2240 | 2538 | 3130 | 1796 | 731 |
| MOP1848T | 6x16 / 1800x4800 | 3 | - | 1800 | 4800 | 4693 | 1435 | 2242 | 2822 | 3130 | 1486 | 732 |
| MOP1848F | 6x16 / 1800x4800 | 4 | - | 1800 | 4800 | 4693 | 1735 | 2242 | 3133 | 3130 | 1796 | 737 |
| MOP2148D | 7x16 / 2100x4800 | 2 | - | 2100 | 4800 | 4692 | 1300 | 2540 | 2610 | 3130 | 1346 | 732 |
| MOP2148T | 7x16 / 2100x4800 | 3 | - | 2100 | 4800 | 4565 | 1435 | 2542 | 2315 | 3045 | 1527 | 700 |
| MOP2148F | 7x16 / 2100x4800 | 4 | - | 2100 | 4800 | 4565 | 1805 | 2542 | 3707 | 3045 | 1921 | 700 |
| MOP2160D | 7x20 / 2100x6000 | 2 | - | 2100 | 6000 | 5689 | 1243 | 2542 | 3537 | 3759 | 1323 | 1015 |
| MOP2160T | 7x20 / 2100x6000 | 3 | - | 2100 | 6000 | 5689 | 1600 | 2542 | 3908 | 3978 | 1703 | 1015 |
| MOP2160F | 7x20 / 2100x6000 | 4 | - | 2100 | 6000 | 5700 | 1805 | 2542 | 4127 | 3978 | 1921 | 801 |
| MOP2460D | 8x20 / 2400x6000 | 2 | - | 2400 | 6000 | 5689 | 1243 | 2842 | 3394 | 3759 | 1323 | 1015 |
| MOP2460T | 8x20 / 2400x6000 | 3 | - | 2400 | 6000 | 5689 | 1600 | 2842 | 3875 | 3978 | 1703 | 1015 |
| MOP2466D | 8x22 / 2400x6600 | 2 | - | 2400 | 6000 | 6258 | 1293 | 2842 | 3789 | 4293 | 1376 | 1014 |
All parameters are for reference only & subject to change without notice.
